OEM Customized Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling with Keyway Tapered Structure and 2000n-m Rated Torque

Nom De Marque:	WeSeW
Numéro De Modèle:	Pour l'assemblage des pièces
Nombre De Pièces:	1 pièces
Prix:	US$5~US$50 per pc
Conditions De Paiement:	T/T, Union occidentale
Capacité à Fournir:	10 000 pièces par mois

Les informations détaillées

Description du produit

Les informations détaillées

Lieu d'origine:

Chine

Certification:

CE, ISO9001/UL

Nom:

Accouplement de l'arbre de fente

OEM/ODM:

Service d'usinage de tournage de fraisage CNC OEM ODM

Capacités matérielles:

Métaux en aluminium, en laiton, en bronze, de cuivre, durcis

Application:

Machines de découpe des métaux, machines de redressement des métaux, machines de filature des métaux

Standard:

DIN, ASTM, GOST, GIGAOCTET, JIS, NORME ANSI, BS

Usinage CNC ou non:

Usinage CNC

Micro usinage ou non:

Micro-usinage

Méthode de traitement:

Dessin d'ingénierie du client

Détails d'emballage:

caisse en bois

Capacité d'approvisionnement:

10 000 pièces par mois

Mettre en évidence:

Five-Point Design Spline Shaft Coupling

Keyway Tapered Structure Flexible Coupling

2000n-m Rated Torque Rectangular Spline Coupling

Description du produit

OEM Customized Machine Learning Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling

High-precision flexible steel rectangular spline shaft coupling with keyway tapered structure, designed for demanding industrial applications requiring reliable torque transmission and precise alignment.

Technical Specifications

Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Construction Works, Energy & Mining, Other
Material	Steel
Standard or Nonstandard	Standard
Structure	Universal
Warranty	1 year
Bore Diameter	100mm
Maximum Speed	5,000 RPM
Rated Torque	2000 N·m
Type	Flexible
Outer Diameter	145mm
Bore Diameter Range	24mm ~ 65mm
Length Range	163mm - 323mm
Bore Type	Finished Bore
Surface Treatment	Blackening
Minimum Order Quantity	1 Set

Key Features & Benefits

High Load Capacity: Multi-tooth structure design with large total contact area and uniform force distribution for substantial torque transmission in heavy-duty applications
Excellent Alignment and Guidance: Numerous evenly distributed teeth ensure high alignment precision between shaft and hub, ideal for high-speed operation and precision transmission systems
High Structural Strength: Shallow keyways minimize stress concentration at tooth roots, effectively reducing strength degradation in shafts and hubs
Wide Application Range: Commonly used in automotive transmissions, machine tool spindles, hydraulic equipment, and other applications demanding high centering accuracy and reliability
Diverse Compatibility: Available in rectangular splines (small-diameter centering, easy machining) and involute splines (self-centering, higher strength)

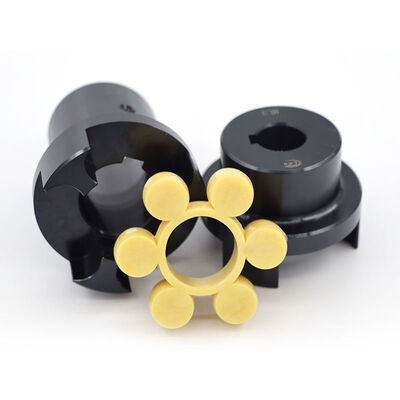

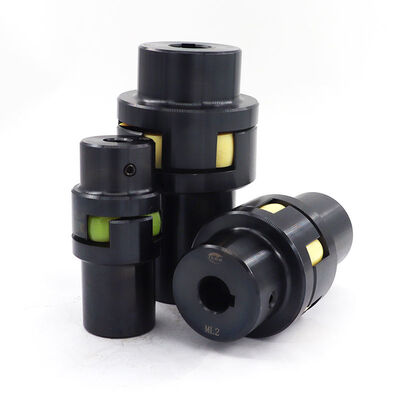

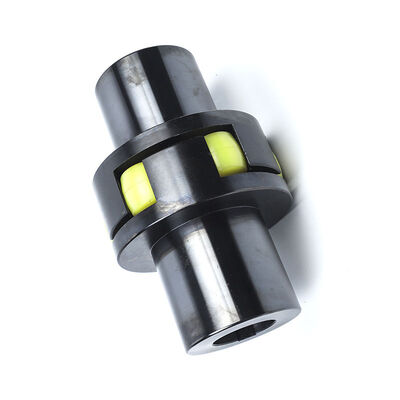

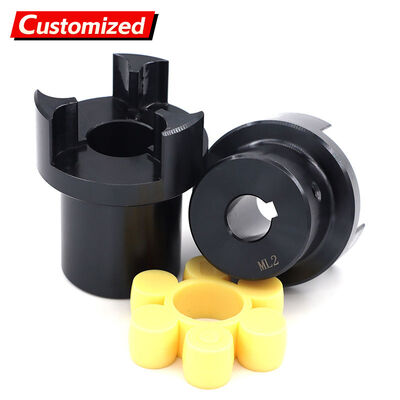

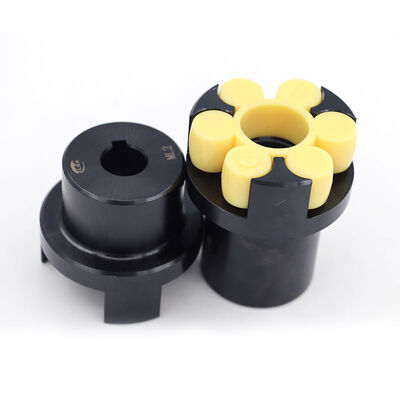

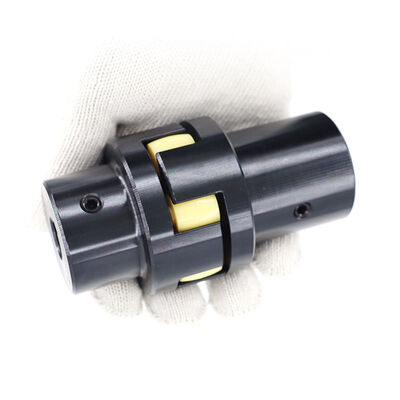

Product Images
