Customized Tube Chain Conveyor for Powder Material Handling Tubular Drag Chain Conveyor Tubular Conveyor for Powder and Granule Handling in Industrial Plants

Customized Tube Chain Conveyor for Powder Material Handling Tubular Drag Chain Conveyor Tubular Conveyor for Powder and Granule Handling in Industrial Plants

Nom De Marque:	WESEW
Numéro De Modèle:	W003
Nombre De Pièces:	1 pièces
Prix:	US$75000~US$20,000/set
Conditions De Paiement:	T/T, Union occidentale
Capacité à Fournir:	100 sets par mois

Les informations détaillées

Description du produit

Les informations détaillées

Lieu d'origine:

Chine

Certification:

Matériel:

Acier inoxydable

Caractéristique matérielle:

Résistant à la chaleur, résistant au feu

Application:

Industrie chimique, transport de céréales, transport minière, centrale électrique

Industries applicables:

Fabrication des usines, de l'énergie et de l'exploitation minière

Composants de base:

Moteur, moteur

Dimension(L*L*H):

Personnalisé

Spécification:

Personnalisé

Structure:

Transporteur de chaîne

Détails d'emballage:

caisse en bois

Capacité d'approvisionnement:

100 sets par mois

Mettre en évidence:

customized tube chain conveyor for powder

tubular drag chain conveyor for granules

industrial chain scraper conveyor with warranty

Description du produit

Customized Tube Chain Conveyor for Powder Material Handling

Tubular Drag Chain Conveyor for Powder and Granule Handling in Industrial Plants

Our customized stainless steel tube chain conveyor systems are ideal for grain, fertilizer, and feed transportation in space-constrained applications. These fully enclosed tubular chain conveyors provide efficient material handling with minimal energy consumption.

Tube Chain Conveyor System Features

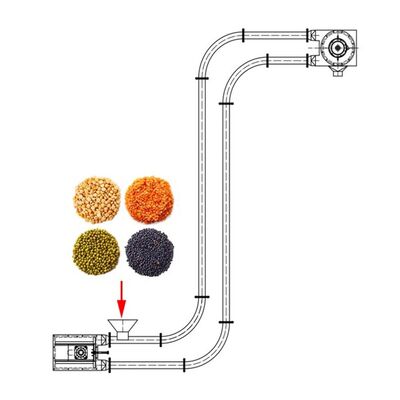

Also known as plate chain conveyors, our systems operate within sealed pipes for dust-free operation. They offer stable performance and energy efficiency when conveying bulk materials including powders, fine particles, and small lumps. Capable of horizontal, inclined, and vertical transportation, these conveyors serve industries such as chemical processing, agriculture, mining, food production, and construction.

Technical Specifications

Motor Specifications

Motor Power	Kw	4-80
Power Voltage		380/220

Main Performance Parameters

Chain Wheel Speed	r/min	8-20
Chain Plate Speed	m/s	3
Conveying Quantity	CBM/h	4-80

Steel Wire Rope Conveyor Advantages

Compact structure with universal turning capability
No dead areas in material flow
Multiple discharge points without special airlocks
Adjustable plate spacing for versatile applications
Ideal for small capacity material conveying
More economical than plate chains with lower maintenance costs

Model Specifications

Model	Capacity (m³/h)	Chain Wheel Speed (r/min)	Chain Plate Speed (m/s)	Motor Power (kw)
GL80	4	20	0.29	4
GL100	8	18	0.31	5.5
GL150	16	15	0.31	7.5
GL200	28	12	0.3	11
GL250	48	10	0.3	15
GL300	60	8	0.28	18.5
GL400	80	8	0.28	22

Technology Advantages

Scientific Design: Includes anti-off chain device, chain-broken protection, color disc matching, chain reverse recognition, and emergency outlets for rapid production resumption
Perfect Service: Extensive manufacturing and installation experience with ample spare parts availability
Rich Experience: Proven performance across multiple industries handling diverse materials with capacities up to 300m³/h, vertical conveying up to 40m, and horizontal conveying up to 60m
Powerful Strength: Strong technical foundation with university research partnerships, two research centers, and over 30 engineers in our high-tech enterprise
Advanced Technology: Online status detection system with timely alarms and interlocks to prevent equipment accidents
Excellent Performance: High-temperature resistance up to 250°C (soft disc) and system operation capability at 500°C

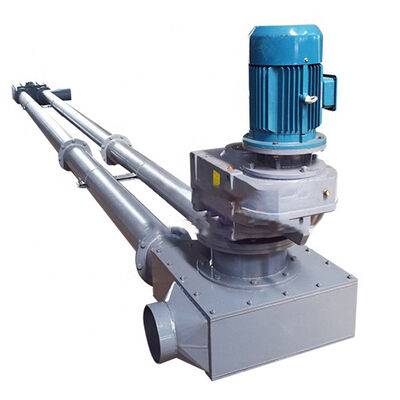

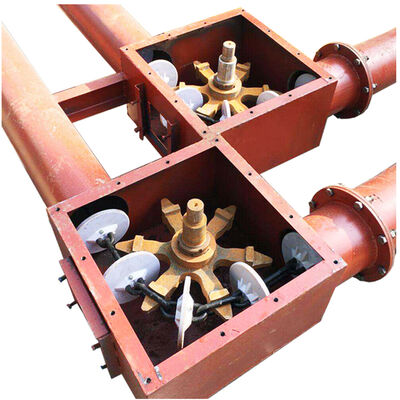

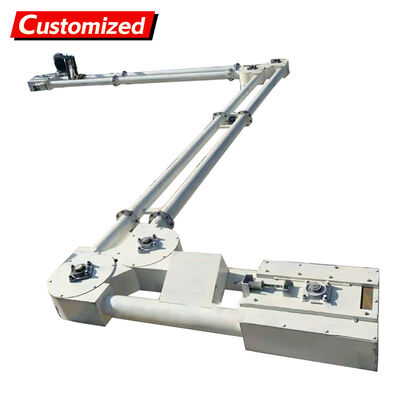

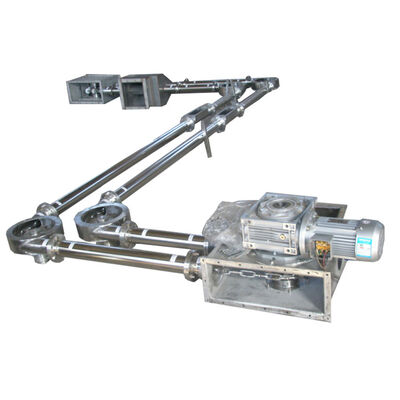

Product Images
